Integration Tools

Overview

A great way to leverage XL and streamline your operations is to integrate XL with your other manufacturing systems.

XL has been designed to work with almost any type of PLC, MES, ERP, or Reporting system. You integrate XL with your process using our API, or by using a solution provided by a third-party integration partner.

Our integration partners help you to quickly integrate XL by combining an extremely deep knowledge of XL with standard software tools, and custom integration services. They typically help people to:

  • Import XL data into existing reporting systems.
  • Rollup, slice, dice, and analyze data across an entire enterprise.
  • Link XL to their production scheduling system.
  • Link XL to their PLCs to automate reason capture.

Enterprise Database

Using the Data Collector, automatically write data from multiple XL devices to an SQL Database on your server.

  • Archive your production data in an SQL Database.
  • Eliminate manual reporting by integrating with your existing reporting solutions.
  • Runs ‘behind the scenes’ as a simple automated windows service.

Learn more about the XL Data Collector here

Image showing that Microsoft SQL can connect to XL.

ERP Integration

Using the Data Link ERP, establish a direct connection between your ERP system and XL systems to transfer job information from ERP into XL, and to transfer production data from XL back into ERP.

  • ERP knows your plan: Export production standards to XL.
  • XL knows what you’re producing: Import production data from XL to your ERP system.

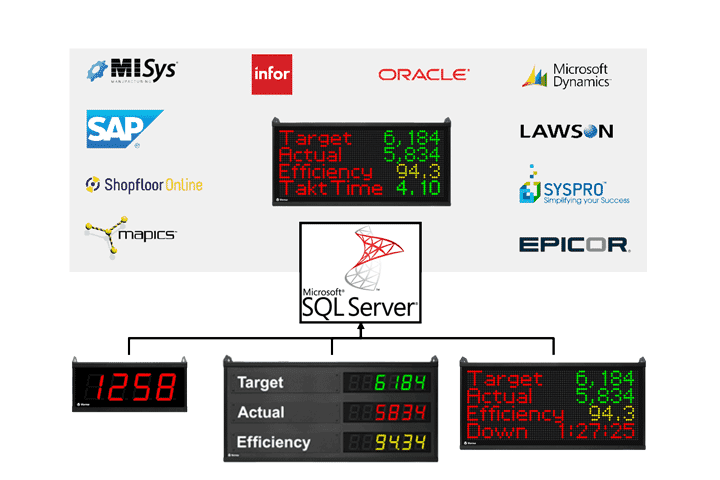

Image showing that in addition to SQL, many ERP systems can connect to XL.

XL HMI

The XL HMI connects one or more XL units to a single tablet, touchscreen, or PC, enabling your team to interact with XL from a screen on the plant floor. It can help your team:

  • Set downtime reason codes using a dropdown list or individual buttons for each reason.
  • Enter reject reasons with dynamic quantities.
  • Manually control production state and execute state changes such as Breaks/Lunch/Shift Start/Shift End.
  • Execute pre-programmed parts and jobs or create new ones on the fly.

Read more about the XL HMI here.

Image showing that many XL devices can be connected to one screen using the XL HMI.

PLC Integration

The Data Link PLC moves data from your PLC to Vorne XL systems on the manufacturing floor. No programming required! Just browse tags and select different options for moving data in real-time.

  • Reduce the need to manually scan barcodes by sending information from your PLC to XL.
  • Automatically activate down reasons or trigger various inputs to eliminate manual data collection.
  • Send other information (numeric or alphanumeric) from the PLC to XL.
Image showing that a PLC can send information to XL.

XL Custom Messages

Using PiXL software, create graphics and images on your computer for display on your Vorne XL system on-demand, or based on a specific metric.

  • Create custom messages such as “Great Job Team”, or graphics such as your company logo.
  • Activate these graphics based on a specific metric – e.g. display Great Job Team when the crew beat their shift target.

Read more about PiXL here.

Image showing that a message typed into a computer can appear on XL

XL Display Viewer

Recreate the XL scoreboard on any monitor or television. See live data from multiple XLs on your desktop or LCD/Plasma TV displays in break rooms, hallways or anywhere.

  • Supports as many XL Devices as you have available on the network.
  • Easy to deploy, with no programming needed.

Read more about the XL Display Viewer here.

Image showing that XL scoreboards can be viewed on a monitor.
Try Vorne XL FREE today with zero risk
XL-810
This is XL. It's an all-in-one device that integrates a scoreboard, production monitor, database, and browser-based reporting suite. Everything you need to monitor and improve production.
What's included in your 90-day XL trial:
  • 1 Vorne XL device
  • 1-on-1 product tour (so you can hit the ground running when your XL arrives)
  • Easy self-install guide and dedicated Customer Success Manager
  • Automated, real-time, accurate data and at-a-glance meaningful plant floor KPIs
  • No software to install, no subscription, maintenance, or other recurring fees
